Prisma Lamp Design & Fabrication

Prisma Lamp suspended above a kitchen worktop

Context

A private client in Barcelona wanted to replace the existing kitchen luminaire with a suspended lamp designed around the space, their preferences and their lighting needs.

Objective

To create softly diffused kitchen lighting while making the methacrylate texture a defining feature and allowing the light source to remain visible through the translucent enclosure.

Materials & Lighting

The enclosure uses 3 mm extruded prismatic methacrylate, with a smoked methacrylate top panel that limits unwanted upward light. A 6W, 3000K LED tube provides the light source.

Role & Responsibilities

Design, purchasing, cutting, drilling, bending, bonding, electrical installation and final assembly, supported by SolidWorks development and KeyShot visualization.

Technical Details

Material

3 mm extruded prismatic methacrylate with a smoked methacrylate top panel.

Dimensions

720 × 160 × 75 mm.

Light Source

6W LED tube with a 3000K colour temperature.

Suspension

Ceiling suspension using steel cables.

Software

SolidWorks and KeyShot.

Design Renders

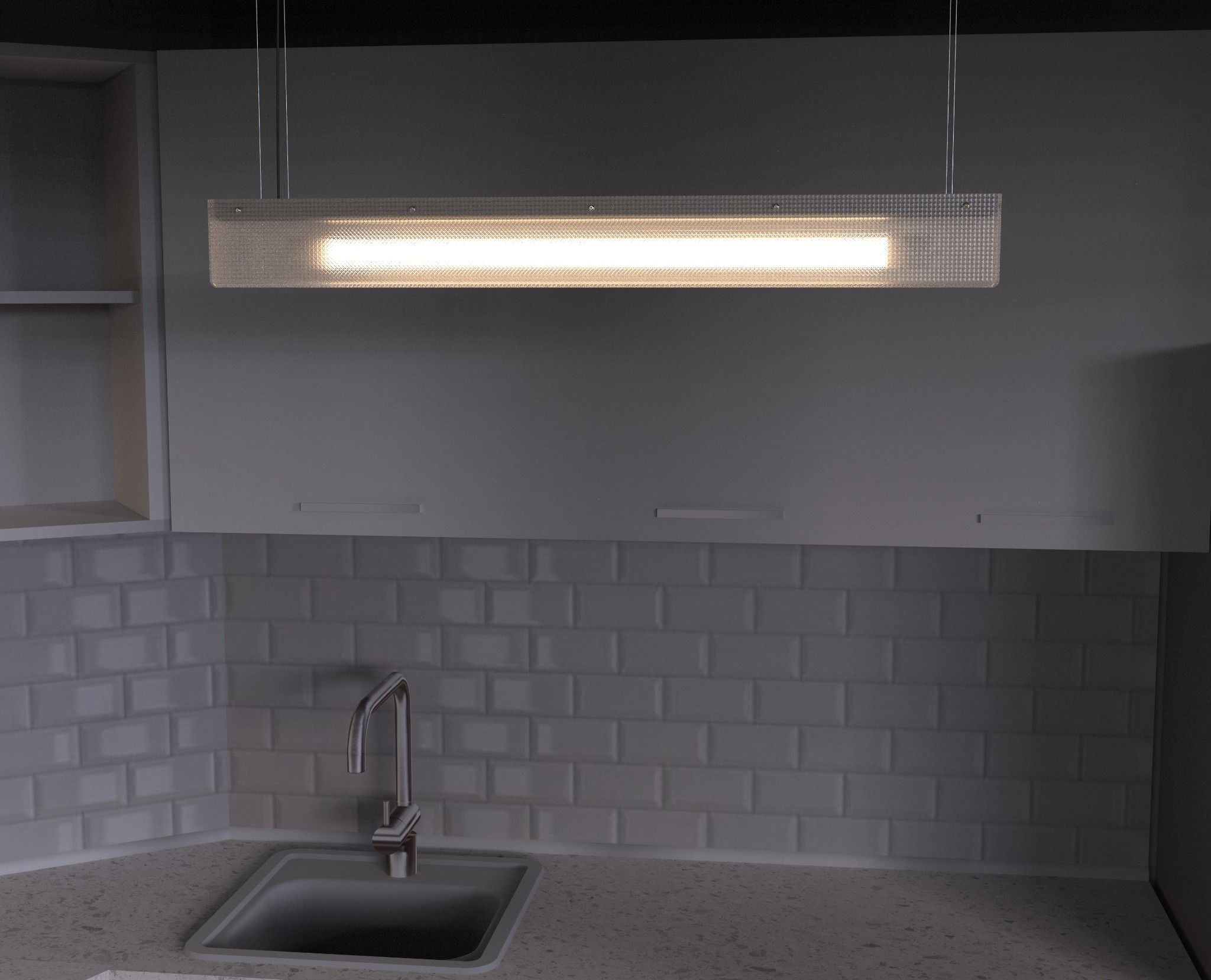

Front rendering of the illuminated Prisma Lamp above the kitchen sink

Perspective rendering of the suspended Prisma Lamp in the kitchen

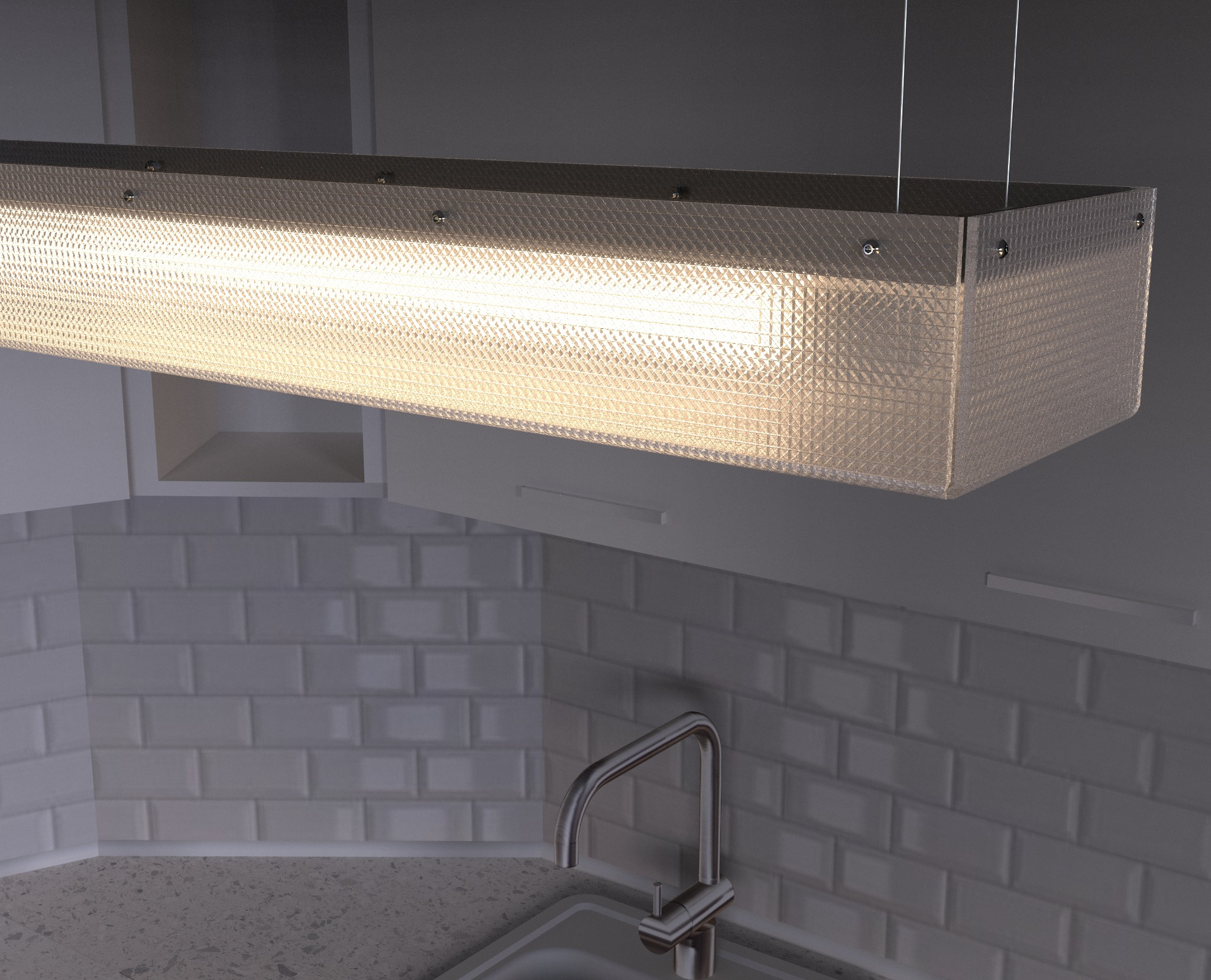

Close rendering showing the prismatic methacrylate texture and light source

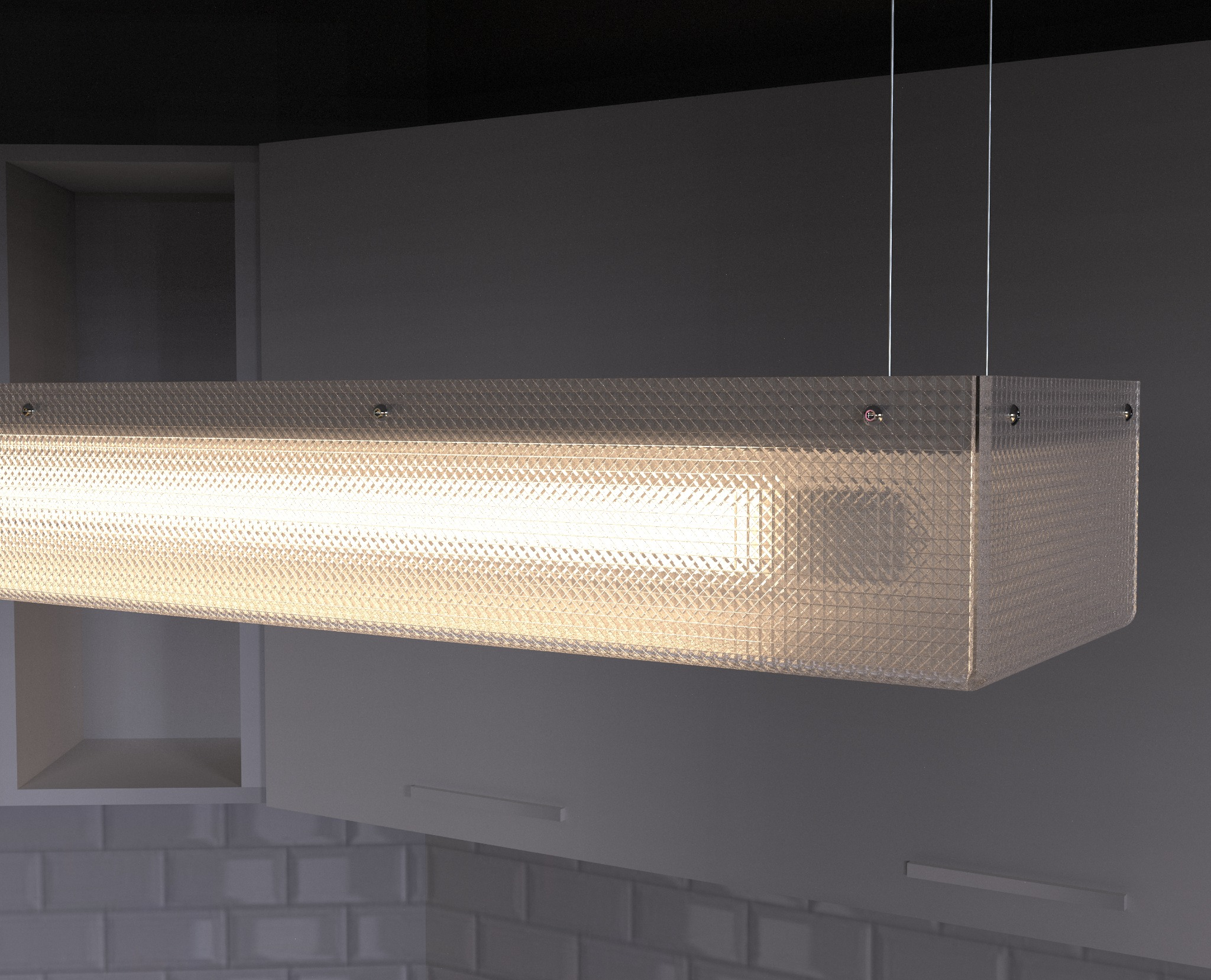

Detailed rendering of the illuminated methacrylate enclosure

Built Lamp

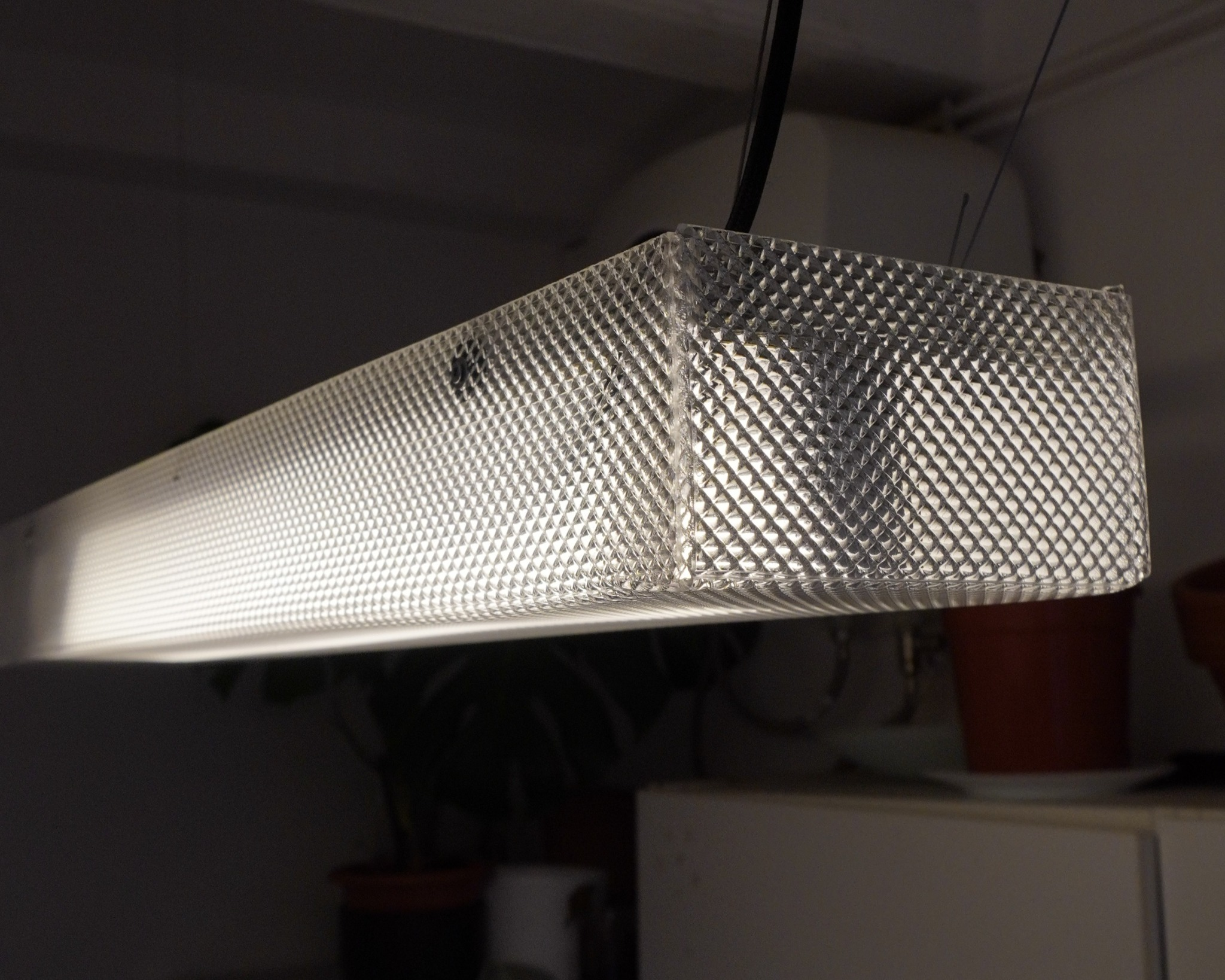

Completed Prisma Lamp suspended in the client's kitchen

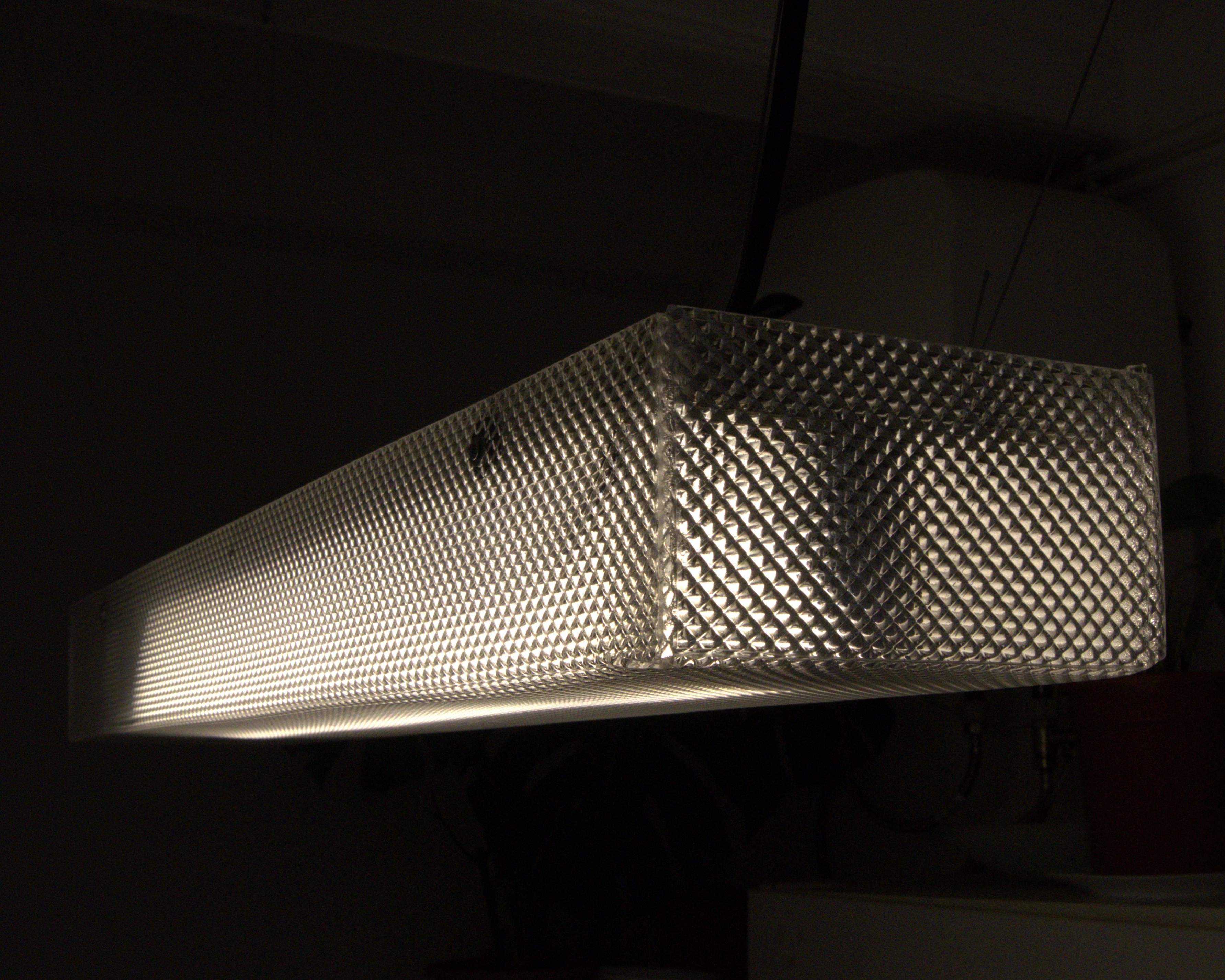

Illuminated Prisma Lamp showing its prismatic methacrylate enclosure

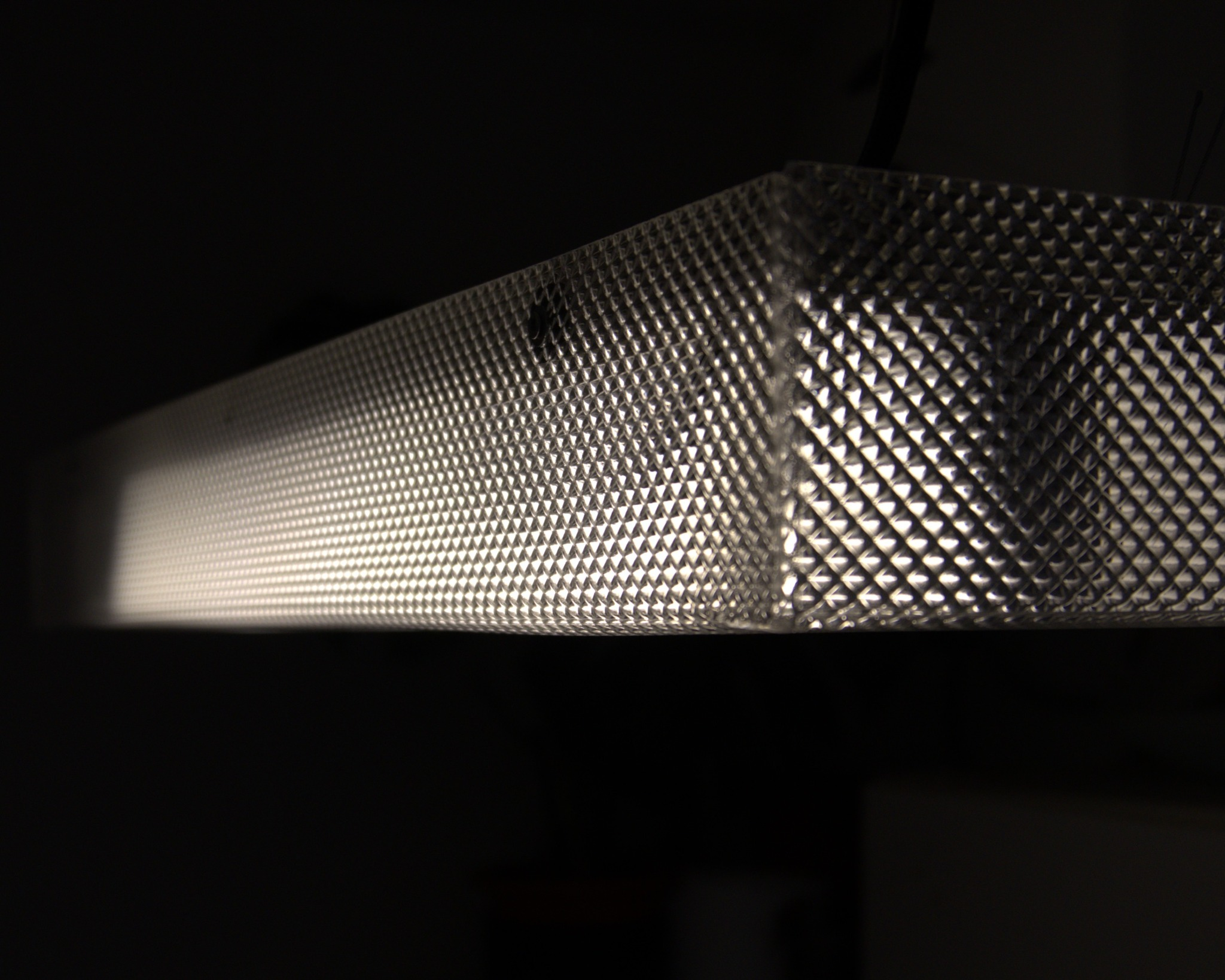

Close view of the light diffusing through the prismatic methacrylate

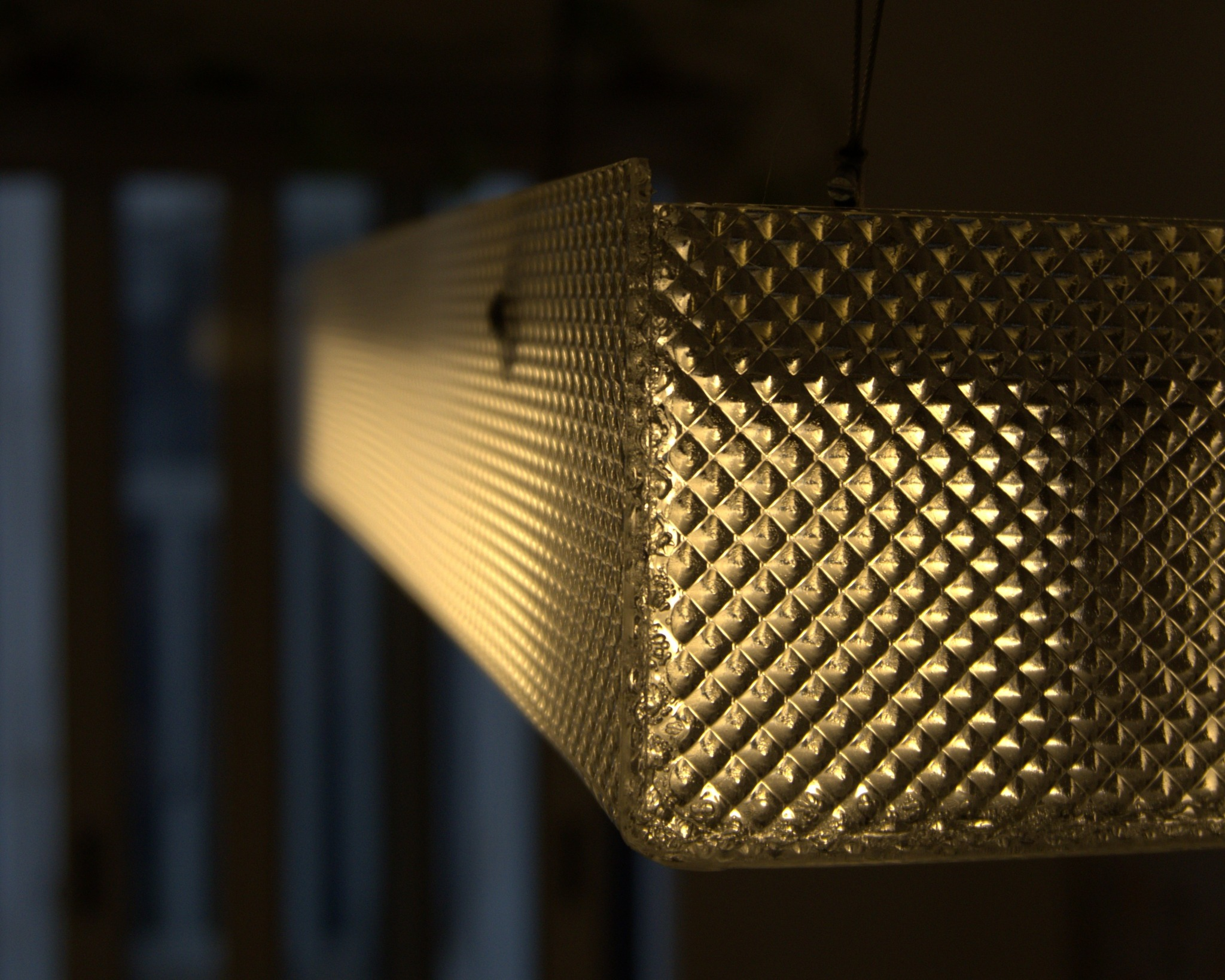

Detail of the fabricated methacrylate corner and steel suspension cable

Final Result

The completed lamp distributes a homogeneous light downwards and laterally, while the prismatic methacrylate creates the intended material effect and keeps the light source perceptible through the enclosure.
